Film Fill Pros & Cons

Film Fill Pros  Cons

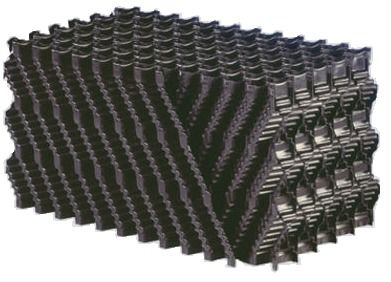

It is manufactured as thin sheets of specialized material—typically high-density polyethylene (HDPE), polyvinyl chloride (PVC), or modified polypropylene—engineered into precise corrugated patterns. These corrugations are not randomly shaped; they are meticulously designed to guide the flow of water into a thin, uniform film as it cascades down the surface of the sheets. This structural design is pivotal: by transforming bulk water flow into a thin film, the contact area between water and the surrounding air is drastically increased, while simultaneously ensuring that the water travels across the material smoothly and quickly. Unlike irregular or flat surfaces that may cause water to pool or flow unevenly, the corrugated pattern creates a consistent flow path that maximizes heat exchange potential.

One of the most significant advantages of film fill is its exceptional customizability, a feature that makes it adaptable to the diverse requirements of different cooling tower designs. To achieve varying thicknesses and heights, individual sheets of film fill can be stacked in modular configurations, with the number of layers and arrangement adjusted according to the specific spatial constraints and heat transfer demands of a cooling tower.

Owing to these inherent advantages, film fill has secured its position as the most popular type of fill used in cooling towers worldwide today. According to data from LATINO, a leading authority in cooling tower technology and components, nearly half of all industrial and commercial cooling towers currently in operation utilize film fill. This high adoption rate is not limited to a specific industry; it spans power generation, petrochemical processing, manufacturing, HVAC systems, and even large-scale refrigeration facilities. The reason behind this widespread preference lies in its unrivaled balance of efficiency, cost-effectiveness, and versatility. Compared to other types of fill (such as splash fill), film fill achieves higher heat transfer coefficients with a smaller footprint, making it an ideal choice for both new cooling tower installations and retrofitting existing systems to improve efficiency and reduce energy consumption.

Despite its dominance in the market, film fill is not without limitations, and its most prominent concern is its well-documented reputation for clogging. This issue stems primarily from the structural characteristics that contribute to its efficiency: the narrow passages formed by the corrugated sheets, particularly in the upper sections of the fill stack. When water enters the cooling tower, it is distributed through a header system and sprayed onto the top layer of the film fill. However, the narrow gaps between the corrugated sheets at the top often do not allow the water to redistribute itself evenly across the entire surface of the fill. This uneven distribution leads to two key problems: first, some areas of the fill may become underutilized (receiving insufficient water flow), reducing overall heat transfer efficiency; second, debris, sediment, or suspended solids present in the cooling water can accumulate in the narrow passages where water flow is restricted. Over time, this accumulation builds up, gradually narrowing the passages further and eventually leading to complete clogs. Clogging not only degrades cooling performance but also increases pressure drop across the fill, forcing the tower’s fans to work harder and increasing energy costs. In severe cases, it may even require costly shutdowns for cleaning or replacement of the fill sheets.
